1.Reduce packaging and management cost, improve efficiency
2.Capable of sanitary pad and panty liner
3.Full servo motor control make machine user-friendly
4.Sensor limite protect all machine movment
5.Change over setting selection available on HMI
6.Trim suction function ,environmental friendly
7.Accurate mould design guarantee the good sealing

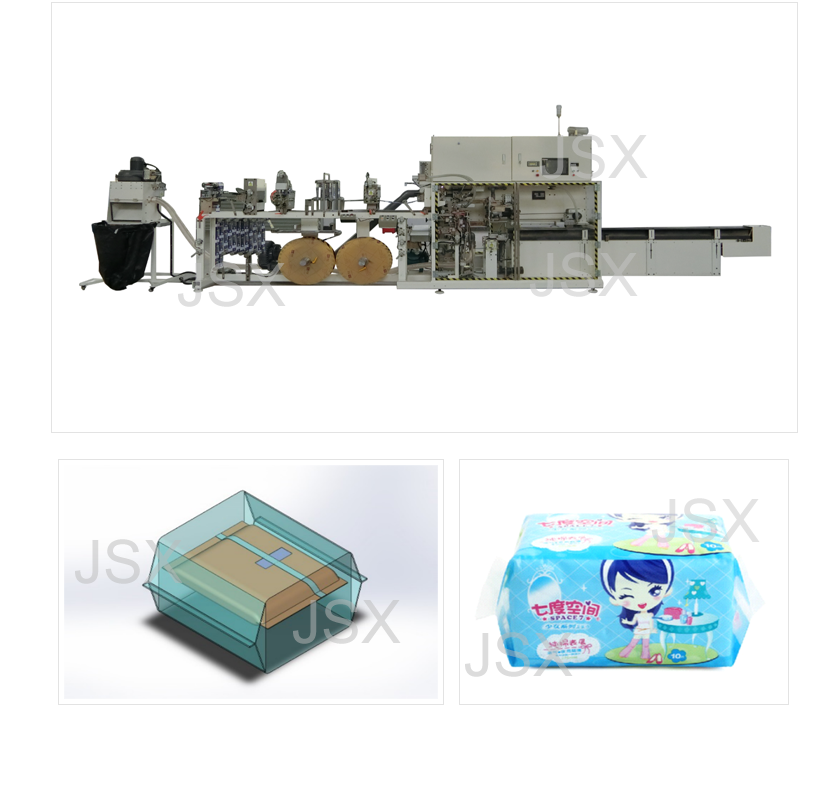

Model:QB-100
Material:PE
Bag process:Roll type bags
Package range:L(80-120)*W(30-90)*H(80-180)mm
Machine Dimension:L(6000)*W(950)*H(2000)mm
Weight:950kg
Power supply:3 phase, 380V+N+PE,±5%，50HZ
Capacity:25KW
Air Consumption:0.5m³/min
Pneumatic :0.6Mpa
Speed:55-60 bag/min
