Diaper packaging machine

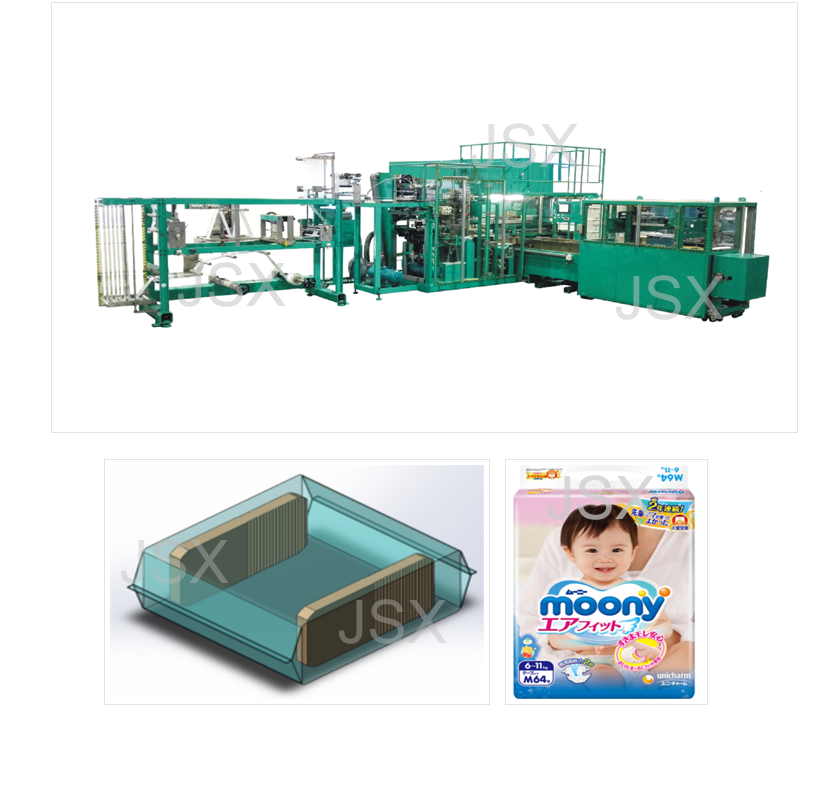

Full-Auto Diaper Packaging Machine
Machine features
1.Reduce packaging and management cost, improve efficiency
2.Capable of sanitary pad and panty liner
3.Full servo motor control make machine user-friendly
4.Sensor limite protect all machine movment
5.Change over setting selection available on HMI
6.Trim suction function ,environmental friendly
7.Accurate mould design guarantee the good sealing
Model:QB-500
Material:PE
Bag process:On line bag making
Package range:L(125-455)*W(125-175)*H(145-505)mm
Machine Dimension:L(4000)*W(2600)*H(2100)mm
Weight:4600kg
Power supply:3 phase, 380V+N+PE,±5%,50HZ
Capacity:25KW
Air Consumption:0.5m³/min
Pneumatic :0.8Mpa
Speed:30-35 bag/min
